Niobium Sputtering Target , 99.95%-99.99% Purity, Customized -Coating Material
|
Application:
Coating materials for semiconductors and optics, anticorrosion
materials for ships, chemical vessels. LCD etc.
Purity:Nb 99.95%(3N5)-99.99%(4N)
Manufacturing Standard: ASTM B392, ASTM B393

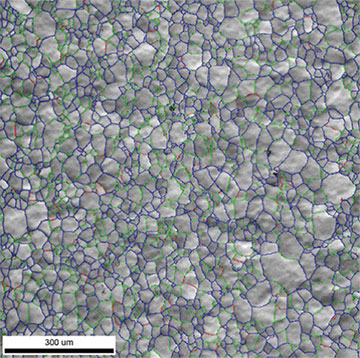

Grain Size: Typical size<100μm Grain Size
(Other grain size available upon request )
Flatness: ≤0.2mm
Surface Roughness:< Ra 1.6μm
Surface： Polished
Dimension: Rectangular target, size as per request
|
|
Specification: Customized as per request
|
Products
|
Regular Specification
|
Limit Specification
|
|
Niobiuim Rectangular Targets
|
1193*127*6.0mm 685.8*127*6.35mm 320*100*8mm 377.8*120.6*6.35mm 475*127*6.0mm Φ355.6*6mm Φ152.4*6.0mm Φ101*6.0mm
|
The maximum length of one Rectangular target is 1550mm, the maximum width is 530mm, grain size can be controlled between 30 to 80μm.
|
Impurities:
Metallic impurities, ppm max by weight
|
Element
|
Cu
|
Ti
|
Mn
|
Hf
|
Fe
|
Al
|
Mo
|
Cr
|
Si
|
Ta
|
Ni
|
W
|
Zr
|
|
Content
|
10
|
5
|
5
|
20
|
20
|
5
|
10
|
5
|
30
|
200
|
5
|
15
|
50
|
Non-Metallic impurities, ppm max by weight
|
Element
|
N
|
O
|
C
|
H
|
|
Content
|
50
|
100
|
50
|
10
|
If you require customization service, you only need to send us your required material, purity, dimension, quantity or a drawing for an inquiry. We will reply you our best quote ASAP.
|
